Polymer Strain Insulator

Introduction



Our Polymer Strain Insulator is a trusted and reliable product that has gained recognition worldwide. It’s an extensively researched and developed product that is designed to ensure a high degree of safety for power transmission lines. With the current trends in renewable energy, the demand for insulators has been on the rise, especially for high-voltage applications.



In this article, we’ll delve deeper into the features and benefits of the Polymer Strain Insulator.



Features



1. High Strength-to-Weight Ratio



Our Polymer Strain Insulator offers a higher strength-to-weight ratio than porcelain insulators. The lightweight nature of the polymer insulator makes it easier and safer to handle, install, and maintain.



2. Better Resistance to Pollution



Pollution flashover is a problem commonly experienced with insulators. Our Polymer Strain Insulator is designed to withstand harsh environmental conditions, including pollution, thus reducing the occurrence of flashovers.



3. Excellent Mechanical Strength



The unique design of the Polymer Strain Insulator makes it durable and resistant to mechanical stress caused by strong winds, ice, and heavy loads. Therefore, it requires minimal maintenance, which lowers the overall cost of operation.



4. UV Resistant



The insulator offers excellent resistance to UV radiation and other weathering factors. The polymer used in the manufacturing process is chosen for its ability to withstand sun exposure and retain its mechanical characteristics even after exposure to sun rays for an extended period.



Benefits



1. Improved Safety



Our Polymer Strain Insulator is designed to ensure a high degree of safety and reliability. The high-performance insulator adopts proactive measures to minimize the occurrence of flashovers, ensuring the safety of personnel and the public.



2. Cost Reduction



The lightweight nature of the Polymer Strain Insulator reduces installation and maintenance costs significantly. The insulator requires fewer labor hours and equipment to install and maintain, thereby reducing overall operating costs.



3. Longer Service Life



The Polymer Strain Insulator has a longer service life than porcelain insulators. The unique design of the insulator and the high-quality polymer material used in its production ensure minimal maintenance requirements and a longer lifespan.



4. High Performance



The high-performance insulator is designed to meet the demands of high-voltage applications. The insulation properties of the polymer used in the manufacturing process ensure efficient transmission of electricity, even in harsh environmental conditions.



Conclusion



The Polymer Strain Insulator is a product that is designed to offer high-performance, safety, and durability. The product has been tested and proven to withstand harsh environmental conditions while maintaining its mechanical and electrical properties. We take pride in providing clients with high-quality insulators that meet their specific requirements. We look forward to partnering with you to deliver the best products and service.

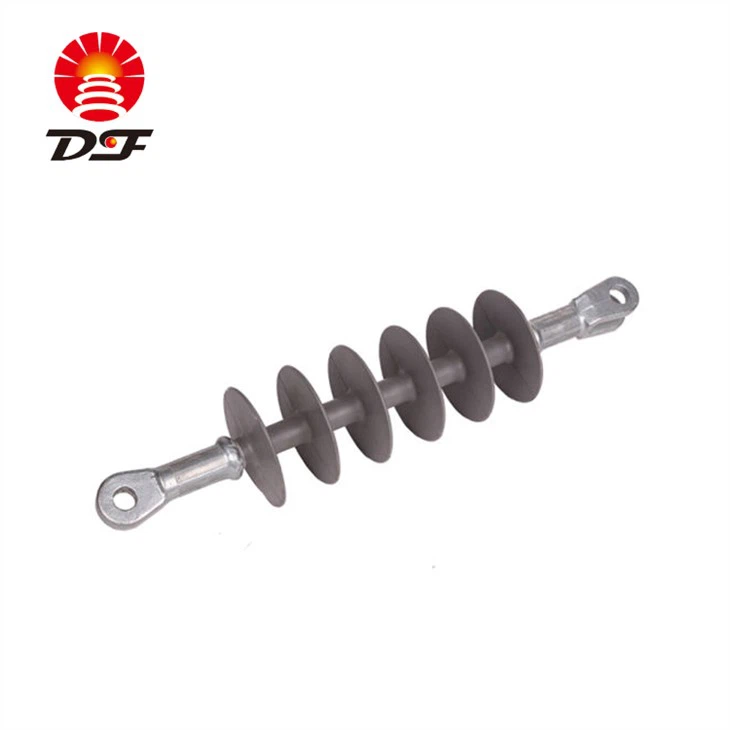

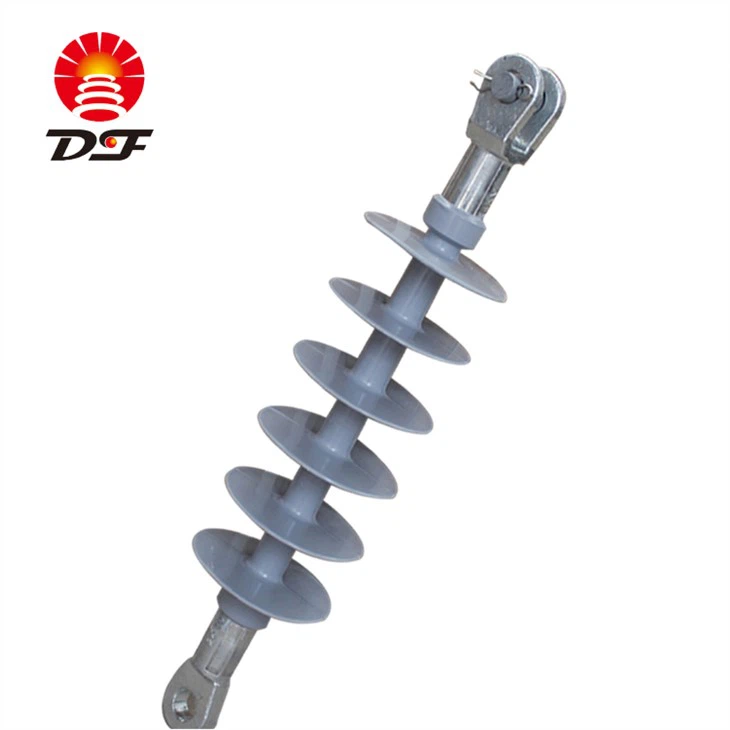

Name: Polymer strain insulator
Type: 24kV Polymer strain insulator

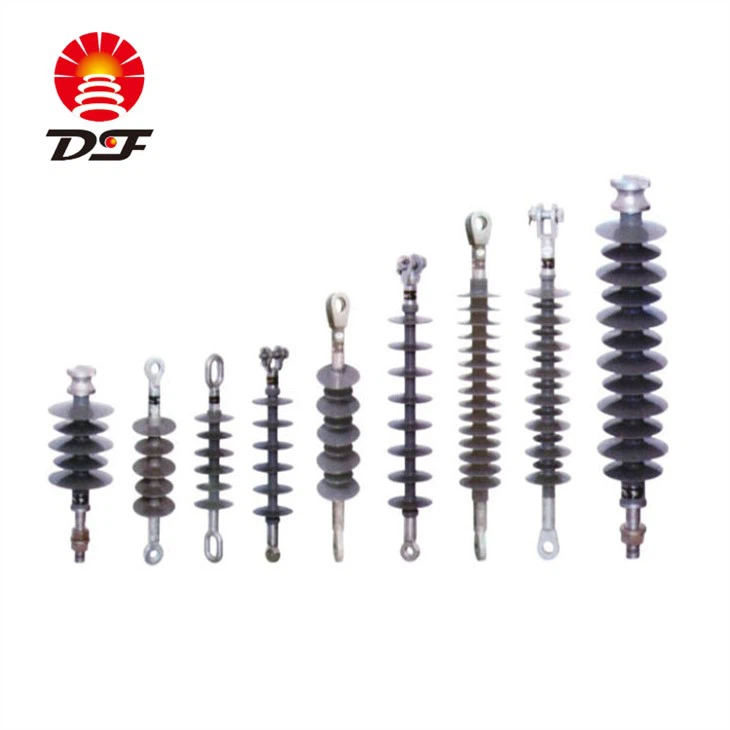

Related type: 11kV, 33kV, 66kV(69kV), 132kV, 230kV, 400kV, 500kV
Voltage Range: 12kV~500kV
Standard: IEC standard
Graze colors of insulators:light gray
Mechanical failing load: 70kN, 90kN, 100kN, 120kN,160kN and as per client’s request
Material:ERC high-temperature fortified acid-proof model core rod & polymeric material

√Triple Seal design, to eliminate all possibilities of moisture ingress

√Fiberglass Rod, to get better traction and tension load on RML and SML

√Forged Steel End Fittings, to ensure a higher consistency of all critical dimensions

√Meets the requirements of all applicable international standards

Polymer strain insulator is a high voltage insulator made of organic silicone rubber composite material. The main products are bar type and cross arm type, which can be used as overhang and tensile bearing insulation on 35kV, 110kV and 220kV lines. Currently there are also insulator products for 10kV lines.
The shape structure of composite insulator is similar to that of suspension insulator, which is composed of end fittings, insulation umbrell-shaped corrugate, sheath and single sleeve rod..

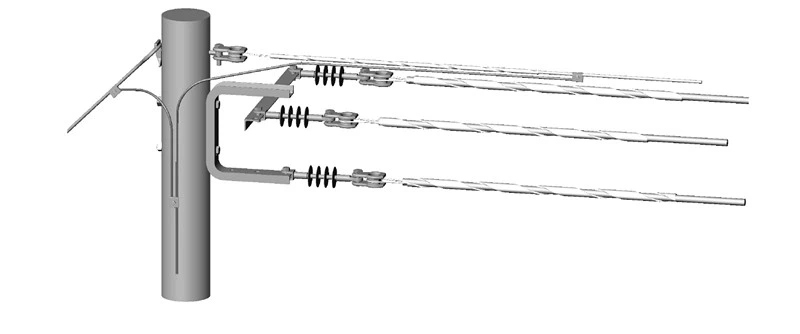

Polymer strain insulator Composite silicone rubber, or polymeric housed dead-end insulators are used to electrically isolate the phase conductors from ground. They are suitable focus on Spacer Cable or Tree Wire Systems. The use of a shackle clevis is recommended when attaching dead-end insulators to Hendrix dead-end brackets.

Type	Rated Voltage ( kV)	Mechanical Tensile Load ( kN)	Ball and Socket Size	Section Length ( mm)	Minimum Arcing distance (mm)	Minimum Creepage distance(mm)	Lightning Impulse Withstand Voltage(kV)	Weight （kg）
FXBW-10/70	10	70	16	400±15	216	450	145	2
FXBW-10/100	10	100	16	435±15	216	450	145	2
FXBW-35/70	35	70	16	615±15	450	1200	230	3
FXBW-35/100	35	100	16	645±15	450	1200	230	3
FXBW-66/70	66	70	16	900±15	720	2100	410	4
FXBW-66/100	66	100	16	940±15	720	2100	410	4
FXBW-110/70	110	70	16	1180±15	1030	3000	550	5
FXBW-110/70	110	70	16	1240±15	1050	3200	550	5
FXBW-110/70	110	70	16	1280±15	1100	3500	550	5
FXBW-110/100	110	100	16	1180±15	1000	3000	550	5
FXBW-110/100	110	100	16	1240±15	1030	3200	550	5
FXBW-110/100	110	100	16	1280±15	1050	3500	550	5
FXBW-110/160	110	160	20	1240±15	1000	3400	550	7
FXBW-110/160	110	160	20	1290±15	1030	3400	550	7
FXBW-220/100	220	100	16	2150±30	2000	6300	1000	10
FXBW-220/100	220	100	16	2240±30	2040	6300	1000	10
FXBW-220/160	220	160	20	2150±30	1900	6300	1000	12
FXBW-220/160	220	160	20	2240±30	1980	6300	1000	12

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

1.Q: What’s your warranty terms?
A: We offer 24 months warranty terms.

2.Q: Do you have the test and audit service?
A: Yes, we have audit service , and sample\ routine\ type test reports.

3.Q: Do you provide sample? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge,the sample charge can return to customer if they place formal order.

4.Q: What is your term of payment?
A: T/T or 100% LC at sight.

5.Q: Which certificate do you have?
A: ISO9001, ISO14001and ISO45001 quality management system certification and CO ,FE,etc
