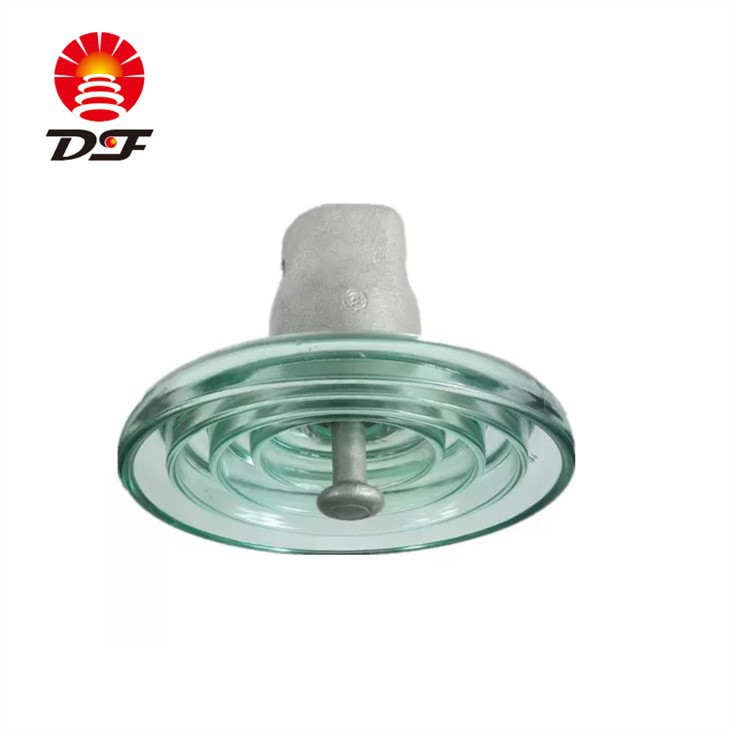

Glass Disc Insulator

Glass Disc Insulator: A Revolutionary Electrical Insulator for Your Business!



As one of the leading manufacturers in China, we are proud to introduce our Glass Disc Insulator to the global market. This innovative and revolutionary product is designed to provide unparalleled insulation for power transmission and distribution systems, making it ideal for use in a wide range of industries and applications.



At our manufacturing facility in China, we use high-quality materials and advanced production techniques to create Glass Disc Insulators that are rugged, durable, and effective. These insulators are made from tempered glass, which is one of the most reliable and robust materials available. It can withstand high temperatures, extreme weather conditions, and mechanical shocks, making it the perfect choice for electrical insulators.



One of the major advantages of our Glass Disc Insulator is that it offers superior electrical insulation properties. The insulator is designed to create a barrier between conductive materials, preventing them from coming into contact and causing electrical faults. This means that our Glass Disc Insulator provides a more reliable and safer electrical insulation solution than traditional insulators.



Another significant benefit of our Glass Disc Insulator is its versatility. It can be used in both overhead and underground power transmission and distribution systems, making it ideal for use in a range of industries, including the telecommunications, energy, and transportation sectors. Our Glass Disc Insulator can also be customized to different sizes and shapes, ensuring that it meets the specific requirements of different applications.



Our Glass Disc Insulator is also easy to install, maintain and replace. With its standard design, it can be easily fastened to support structures without the need for any special tools or equipment. The insulator's compact size and lightweight also make it easy to transport, install and replace, which saves time and money for our customers.



As one of the most reliable and cost-effective insulators available, our Glass Disc Insulator has already gained traction among merchants globally. The product's superior insulation properties, versatility, and ease of installation have made it a favorite of many companies and organizations worldwide. Moreover, our products have passed numerous quality tests, and all our products strictly comply with international safety regulations and standards.



In conclusion, we believe that our Glass Disc Insulator is the perfect electrical insulation solution that will add value to your business. Our company is dedicated to providing high-quality products and services that meet the needs of our customers. We guarantee that our Glass Disc Insulator will provide you with the best possible return on investment, and we look forward to providing you with the excellent service and support you deserve!



Deatails

Name: Glass disc suspension insulator
Type: 70kN Glass disc suspension insulator
Related type: 45kN, 70kN, 100kN, 120kN, 160kN, 210lN, 240kN
Voltage Range: 12kV~220kV
Standard: IEC standard
Mechanical failing load: 45kN, 70kN, 100kN, 120kN, 160kN, 210lN, 240kN and as client’s request.

Description

The main raw materials of our Glass Disc Insulators include quartz sand, feldspar, limestone, dolomite, soda ash, potassium carbonate and other materials. The resulting tempered glass is a homogeneous silicate with better internal microstructure uniformity than electric porcelain and has better dielectric strength. At the same time, the surface of toughened glass is resistant to pressure and has excellent thermal stability, so it can be adapted to long periods of use in outdoor environments.

Features

Our Glass Disc Insulators play an important role in electrical lighting systems because of their unique properties, which offer higher fracture resistance, mechanical compressive strength, and electrical resistance than ceramics. Since they are overall transparent, have a low coefficient of thermal expansion, and do not heat up in the sun like porcelain, there is little risk of bursting. Additionally their caps and pins are made of high strength hot dip galvanized cast iron with a corrosion resistant coating and can be used in an operating temperature range between -60°C and +50°C.

IEC designation		U70B/146	U70B/127
Diameter D	mm	255	255
Height H	mm	146	127
Creepage distance L	mm	320	320
Socket coupling	mm	16	16
Mechanical failing load	kn	70	70
Mechanical routine test	kn	35	35
Wet power frequency withstand voltage	kv	40	40
Dry lightning impulse withstand voltage	kv	100	100
Impulse puncture voltage	P.U	2.8	2.8
Power frequency puncture voltage	kv	130	130
Radio influence voltage	μv	50	50
Corona visual test	kv	18/22	18/22
Power frequency electric arc voltage	ka	0.12s/20kA	0.12s/20kA
Net weight per unit	kg	3.6	3.5

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

1.Q: When can I get the price?
A: Usually we quote within 24 hours after we get your inquiry.

2.Q: Where are you located?
A: Our factory located at Liling City,Hunan Province,China.

3.Q: Do you test all your goods before delivery?
A: Yes,we have routine test before delivery.

4.Q: Could you offer Form E,C/O or 3rd Party Test report?
A: Yes,we can offer,we also can apply the embassy stamp for you if necessary.



Why choose us?

• We have the capacity to meet both small and large production orders without compromising on quality.
• In the future development of the company, for the benefit of customers, we will continue to work hard, reform and innovate, and create better first-class products for users.
• Our factory is equipped with advanced production technology to ensure efficient and cost-effective manufacturing processes.
• We lead the development of the enterprise with global vision and adhere to the strategy of strengthening the enterprise with talents and science and technology.
• Our Suspension Insulators are manufactured using environmentally friendly materials and processes.
• We hope to realize new, specialized and refined products to promote the scale and intensive development of our business operations.
• We maintain a close relationship with our customers to ensure we meet their exact requirements.
• In the process of developing the network market, an enterprise must clearly recognize its own shortcomings and difficulties. At the same time, it must dig out its strengths and advantages, and well grasp the general direction and trend of its development.
• Our team comprises of experts who specialize in manufacturing Suspension Insulators of the highest quality.
• Our company is a professional manufacturer of Glass Disc Insulator, our company produces a wide variety of these.
