Polymer Suspension Insulator

Polymer Suspension Insulators: An Introduction



Polymer suspension insulators are key components of electrical transmission and distribution systems. They are designed to suspend power lines and provide excellent electrical insulation to prevent power loss, outages, and damage to equipment. These insulators are typically made from a polymer material that has excellent electrical and mechanical properties. Compared to traditional ceramic insulators, polymer suspension insulators are lighter, stronger, more durable, and easier to install.



Product Features



Polymer suspension insulators are made from a high-quality polymer that has been specifically engineered to resist electrical arcing, weathering, and chemical corrosion. The insulators consist of a central fiberglass core that is coated with a layer of silicone rubber. This silicone rubber provides superior electrical insulation, excellent water resistance, and UV resistance. The suspension insulator usually consists of a metal fitting, a connection rod, and an insulating head. The installation is simple and easy, and it can be mounted on a tower, a cross-arm, or other support structures.



Product Benefits



Polymer suspension insulators offer many benefits for electrical transmission and distribution systems. Some of the most important benefits include:



1. High performance: Polymer suspension insulators have excellent electrical performance, and they are able to withstand high voltages without degrading or breaking down.



2. Low maintenance: The polymer material is resistant to environmental factors like wind, rain, and pollution, so it requires very little maintenance.



3. Long lifespan: Polymer suspension insulators have a much longer lifespan than traditional porcelain insulators, which can become brittle and crack over time.



4. Lightweight: The lightweight design of polymer suspension insulators makes them easy to install and less prone to damage during transportation and installation.



5. Cost-effective: Polymer suspension insulators are more cost-effective than traditional porcelain insulators because they are more durable, require less maintenance, and can be easily installed.



6. Easy to install: The installation process for polymer suspension insulators is simple and straightforward, and it can be completed quickly and easily.



Applications



Polymer suspension insulators are ideal for use in high voltage and extra high voltage power lines for power transmission and distribution. They are widely used in electric power systems like substations, power plants, wind farms, and other applications.



Conclusion



Polymer suspension insulators are an ideal choice for merchants looking for a cost-effective, durable, and reliable solution for power transmission and distribution systems. They offer superior electrical and mechanical performance, long lifespan, and low maintenance requirements. As a manufacturer of polymer suspension insulators, we strive to provide our customers with high-quality products that meet or exceed their expectations. We take pride in our products and our commitment to excellence, and we are confident that our polymer suspension insulators will exceed your expectations as well.

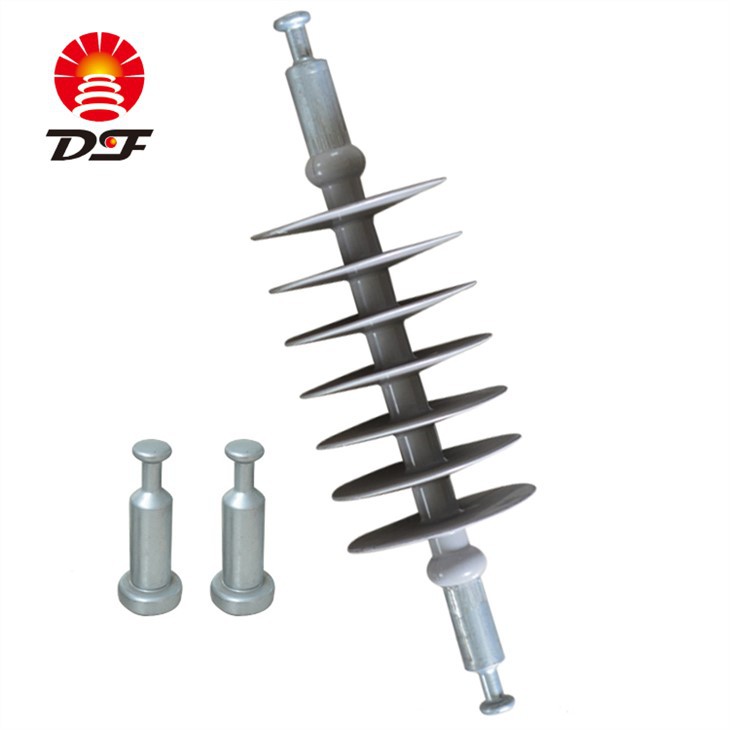

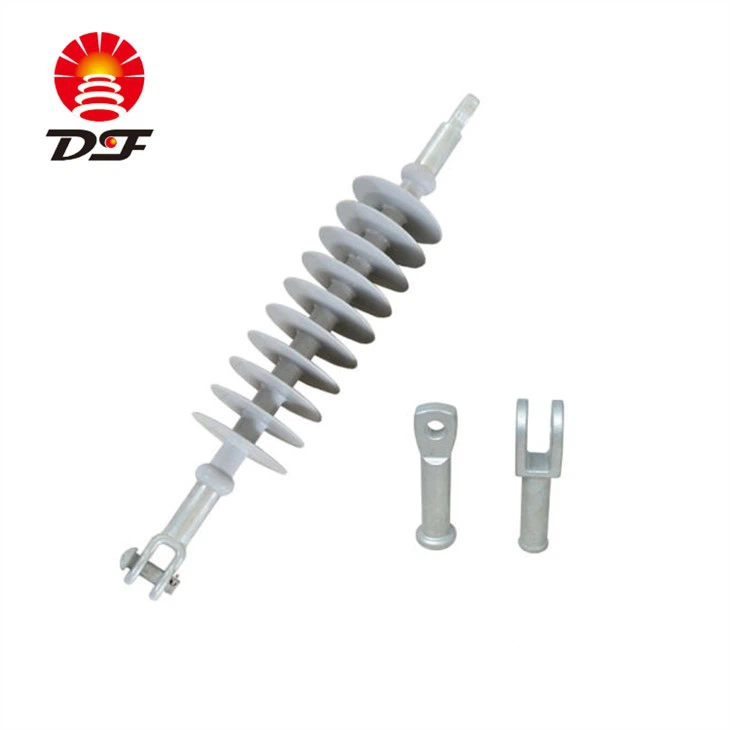

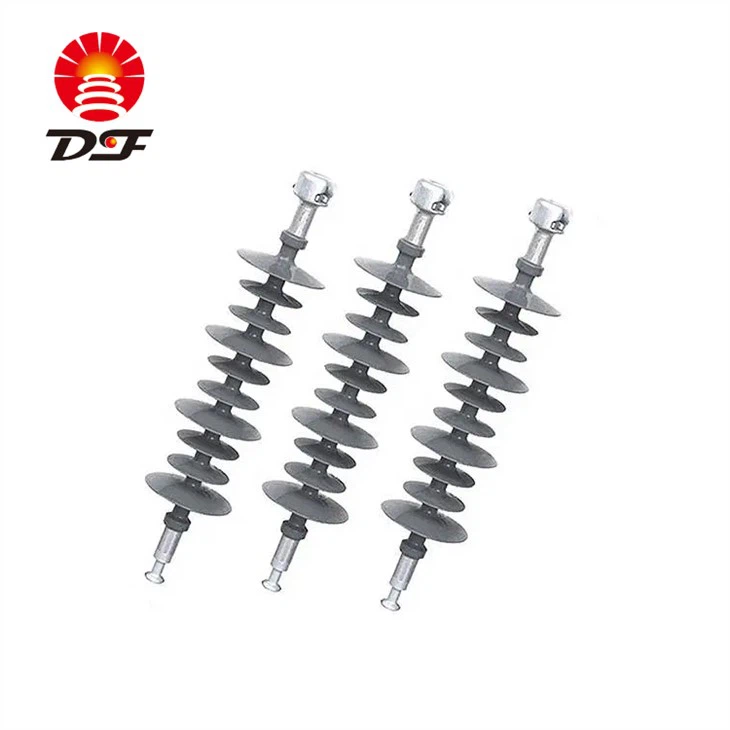

Name: Polymer suspension insulator
Type: 35kV high voltage polymer suspension insulator
Related type: 15kV,25kV,35kV,45kV,66kV etc
Voltage Range: 15kV~66kV
Standard: IEC standard
Graze colors of insulators: light gray
Mechanical failing load: 45kN,70kN,90kN,120kN and as per client’s request
Material: Fiberglass rod & polymeric material
Application: Overhead lines and transmission lines

Polymer suspension insulator As an alternative to ceramics, composite materials were developed for use in insulators for transmission systems. Such composite insulators are also referred to as non-ceramic insulators (NCI) or polymer insulators, and usually employ insulator housings made of materials such as ethylene propylene rubber (EPR), polytetro fluoro ethylene (PTFE), silicone rubber, or other similar materials.

Type	Rated Voltage (kV)	Mechanical Tensile Load (kN)	Coupling length (mm)	Minimum Arcing distance (mm)	Minimum Creepage distance (mm)	Power Frequency Flashover(kV)		Impulse flashover Voltage(kV)
						Dry	Wet
FXB4-35/70	35	70	625	450	1275	171	137	297
FXB4-35/100	35	100	682	480	1200	171	137	297
FXB2-69/70	69	70	880	700	1890	211	169	385
FXB3-69/70	69	70	980	800	2150	236	189	440
FXB4-110/120	110	120	1222	1000	2670	287	229	550
FXB4-132/70	132	70	1482	1300	4040	362	289	715
FXB4-132/120	132	120	1522	1300	4040	362	289	715
FXB4-161/70	161	70	1782	1600	5210	437	349	800
FXB4-161/120	161	120	1822	1600	5210	437	349	880
FXB4-230/120	230	120	2572	2350	7870	622	497	1292

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

1.Q:Do you have a catalog? Could you send me your catalogue ?
A:Yes, we have a catalogue.Please contact us.

2.Q:Can your factory produce according to customer's requirements?
A:Yes, we can produce different products according to customers' requirements.

3.Q:What's your packing standard?
A:Usually we use standard cartons for packing or according to your requirements

4.Q:What's the payment?
A:Usually we accept T/T and L/C.

5.Q:When is the delivery time?
A:We will arrange shipment within 30-40 days after your payment.



Why choose us?

• We have a vast range of Suspension Insulators to meet the diverse needs of our customers.
• We insist on ensuring the production of high-quality Polymer Suspension Insulator with professional manufacturing technology and expert management methods.
• Our professional services include product design, engineering, production, and after-sales support.
• We have been taking products as the core and market positioning as the goal to provide customers with one-stop integrated services of product strategy, research, design and product promotion strategy.
• Our team comprises of experts who specialize in manufacturing Suspension Insulators of the highest quality.
• We not only pay attention to the quality of Polymer Suspension Insulator, but also have a group of professional and technical personnel and backbones to ensure that our design and production standards are ahead of the industry.
• Our Suspension Insulators are designed to withstand extreme environmental conditions.
• We actively improve market composition, enhance market quality, achieve simultaneous improvement of market quantity and quality, and continuously acquire market initiative.
• We believe in delivering quality products and services that meet or exceed customer expectations.
• We have the most advanced production equipment, experienced and qualified engineers and workers, recognized quality control systems and a friendly professional sales team pre/after-sales support for Polymer Suspension Insulator.
