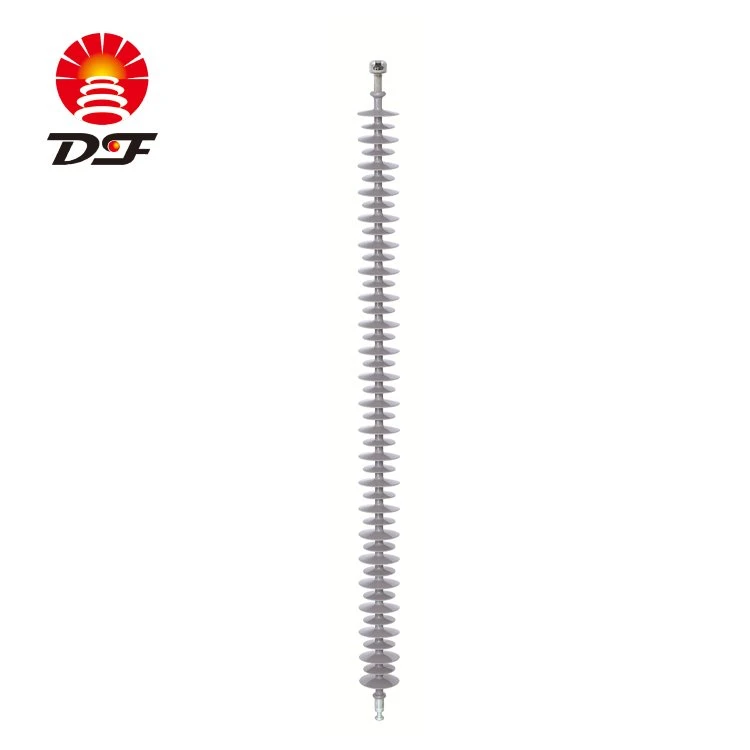

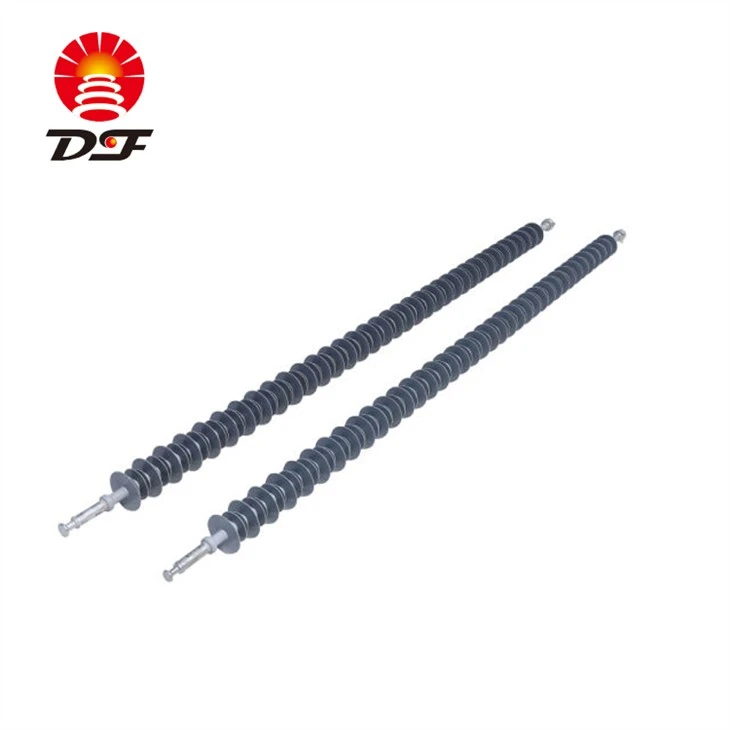

Insulator Suspension Long Rod Polymer

Introduction:



Insulator Suspension Long Rod Polymer is an innovative product designed to improve the efficiency and reliability of electrical power systems. Our product is manufactured using high-quality materials and state-of-the-art production techniques to ensure that it meets the highest standards of quality, durability, and performance. Our Insulator Suspension Long Rod Polymer is specifically designed to be used in high voltage transmission lines where the demands for reliable and efficient energy transmission are paramount.



Features and Benefits:



1. High-Quality Composite Material:



Our Insulator Suspension Long Rod Polymer is made from high-quality composite materials that provide exceptional insulation properties. The composite material is designed to withstand harsh weather conditions and resist UV radiation, making it highly resistant to damage and wear.



2. Lightweight Design:



Our Insulator Suspension Long Rod Polymer is lightweight and easy to install, making it an excellent choice for high voltage transmission lines. Our design reduces the weight of the insulators by up to 50% compared to traditional porcelain insulators. Therefore it requires fewer supports and improves the overall efficiency of the power transmission.



3. Enhanced Insulation Performance:



Our Insulator Suspension Long Rod Polymer provides superior insulation performance in harsh environments, making it an ideal choice for high voltage transmission lines. Our insulators provide a higher creepage distance and superior lightning impulse withstand capability compared to conventional ceramic and glass insulators.



4. Corrosion Resistance:



Our Insulator Suspension Long Rod Polymer is highly resistant to corrosion, making it an excellent choice for high voltage transmission lines installed in coastal and high humidity areas. The insulators made from our composite materials are unaffected by salt spray and prevent the build-up of contaminants that can reduce the insulation properties of traditional materials.



5. Low Maintenance:



Our Insulator Suspension Long Rod Polymer requires very little maintenance, reducing the overall lifecycle cost of a high voltage transmission line. Our insulators are designed to be self-cleaning, preventing dust buildup on the surface, and require only periodic visual inspections to ensure their quality.



Use Cases:



Our Insulator Suspension Long Rod Polymer is designed to be used in high voltage transmission lines, specifically those operating at 220kV and above. Our insulators can be used in lattice towers, tubular steel towers, and suspension towers, providing flexibility in transmission line designs.



Our Insulator Suspension Long Rod Polymer is an excellent fit for transmission lines in coastal regions, humid areas, and those subject to harsh environmental conditions. Our insulators are an ideal solution for reducing the overall weight of transmission lines, which is useful in long-span transmission towers or areas with limited capacity for tower installation.



Our Insulator Suspension Long Rod Polymer is an innovative solution that improves the efficiency and reliability of high voltage transmission lines. Our insulators provide superior insulation properties, corrosion resistance, and low maintenance to reduce the overall lifecycle cost of transmission lines.



Conclusion:



If you are looking for a reliable and cost-effective solution for your high voltage transmission line, our Insulator Suspension Long Rod Polymer is the perfect choice. Our product provides exceptional insulation performance, corrosion resistance, and low maintenance requirements. With our product, you can improve the reliability and efficiency of your power transmission system while lowering your total cost of ownership. Contact us today to learn more about our Insulator Suspension Long Rod Polymer and how it can benefit your business.



Name: Insulator suspension long rod polymer
Type: 220kV insulator suspension long rod polymer
Related type: 11kv, 24kv, 33kv, 66kv, 132kv, 220kv, 330kv, 400kv, 500kv, 800kv, 1000kv
Voltage Range: 11kV~1000kV
Standard: IEC standard, ANSI standard, BS standard
Graze colors of insulators: light gray
Mechanical failing load: 20kN, 40kN, 70kN, 80kN, 100kN, 120kN, 160kN, 210kN, 300kN and as per client’s request
Material: Fiberglass rod & polymeric material
Application: Overhead lines and transmission lines

Insulator suspension long rod polymer a main type composite insulators which also named composite long rod insulator, composite tension insulator, polymer suspension insulator, silicone rubber suspension insulator. Which can be used from 11kV to 1100kV transmission line and distribution line.

Type No.	Voltage (kV)	Section Lenght (mm)	Arcing Distance (mm)	Leakage Distance (mm)	SML (kN)	Power Frequency wet withstand voltage (kV)	Lightning Impulse withstand votlage (kV)
FXBW1-11/70	11	295	165	300	70	40	70
FXBW2-11/70	11	320	195	350	70	40	70
FXBW3-11/70	11	360	235	530	70	45	80
FXBW1-24/70	24	395	273	630	70	55	95
FXBW2-24/70	24	470	350	735	70	60	135
FXBW1-33/70	33	460	339	825	70	70	170
FXBW2-33/70	33	520	400	900	70	90	200
FXBW3-33/70	33	560	454	1080	70	90	200
FXBW4-33/70	33	559	500	1116	70	90	200
FXBW5-33/70	33	642	515	1320	70	95	230
FXBW1-66/70,120	66	683	560	1650	70/120	185	410
FXBW2-66/70,120	66	895	745	1920	70/120	185	410
FXBW3-66/70,120	66	943	821	2250	70/120	185	410
FXBW1-132/70,120	132	1240	1074	3150	70/120	250	550
FXBW2-132/70,120	132	1438	1265	3520	70/120	250	550
FXBW3-132/70,120	132	1435	1306	3821	70/120	250	550
FXBW4-132/70,120	132	1305	1110	4495	70/120	275	650
FXBW4-132/120	132	1450	1240	4495	120	275	650
FXBW1-132/160	132	1565	1305	4270	160	325	700
FXBW2-132/160	132	1605	1310	4500	160	325	700
FXBW1-220/120	220	2180	1980	6125	120	395	1000
FXBW2-220/120	220	2245	2040	7595	120	395	1000
FXBW3-220/120	220	3100	2700	9800	120	395	1000
FXBW1-220/160	220	2340	2130	7040	160	395	1000
FXBW2-220/160	220	2460	2250	7590	160	395	1000
FXBW1-330/160	330	2940	2690	9240	160/210	570	1425
FXBW2-330/160	330	3340	3090	10560	160/210	570	1425
FXBW1-500/210	500	4495	4219	14736	210	740	2050
FXBW2-500/210	500	4899	4659	16323	210	740	2050
FXBW-500/300	500	5000	4659	16323	300	740	2050

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

1. Q: Does your company accept customization?
A:We accept OEM service.

2. Q: What’s your warranty terms?
A: We offer 24 months warranty terms.

3. Q: Do you have the test and audit service?
A: Yes, we have audit service , and sample\ routine\ type test reports.

4. Q: Do you provide sample? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge,the sample charge can return to customer if they place formal order.

5. Q: What is your term of payment?
A: T/T or 100% LC at sight.
