Toughened Glass Insulator – The Future of Electrical Insulation



As the world becomes increasingly dependent on electricity, the importance of reliable and efficient electrical insulation has only increased. Electrical insulators are used to prevent the flow of electrical current between conductors in a circuit, thereby ensuring that electricity flows safely and efficiently from the source to the end user.



Traditionally, porcelain was used as an insulator material due to its high mechanical strength, chemical inertness, and thermal stability. However, in recent years, a new material has emerged that is transforming the electrical insulation market – toughened glass.



Toughened glass insulators are made from special glass that is heat-treated to increase its mechanical strength and resistance to mechanical stress. This makes it an ideal material for use in electrical insulators, where stress is a common occurrence.



The benefits of toughened glass insulators are numerous. Firstly, they offer superior mechanical strength compared to porcelain insulators. Toughened glass insulators can withstand high wind loads, earthquake shocks, and other environmental stresses that porcelain insulators cannot. Secondly, they have a higher resistance to pollution, which means they are less likely to become dirty and contaminated over time, leading to reduced maintenance costs.



In addition, toughened glass insulators have a higher resistance to cracking and chipping, which means they can withstand harsher environments without breaking. This makes them an ideal choice for use in areas where there is a risk of vandalism or sabotage.



Another benefit of toughened glass insulators is that they are more environmentally friendly than porcelain insulators. Porcelain insulators are made from materials that are non-renewable and require a lot of energy to produce. Toughened glass insulators, on the other hand, can be made from recycled glass and require less energy to produce, reducing their carbon footprint.



When it comes to electrical performance, toughened glass insulators have many advantages over porcelain insulators. They have a lower coefficient of thermal expansion, which means they are less likely to expand and contract with temperature changes. This reduces the risk of the insulator cracking or breaking due to temperature fluctuations.



Toughened glass insulators also have a higher resistance to corona discharge, which is a phenomenon that can occur when the electric field around a high-voltage conductor ionizes the surrounding air. This can cause a loss of energy and damage to the insulation, but toughened glass insulators are less susceptible to this than porcelain insulators.



In conclusion, toughened glass insulators are an innovative and exciting development in the field of electrical insulation. They offer superior mechanical strength, pollution resistance, crack resistance, and environmental friendliness when compared to porcelain insulators. They are an ideal choice for use in high-stress environments, areas prone to natural disasters, or regions with high levels of pollution. Toughened glass insulators are the future of electrical insulation, and we are proud to offer this cutting-edge product to merchants around the world.

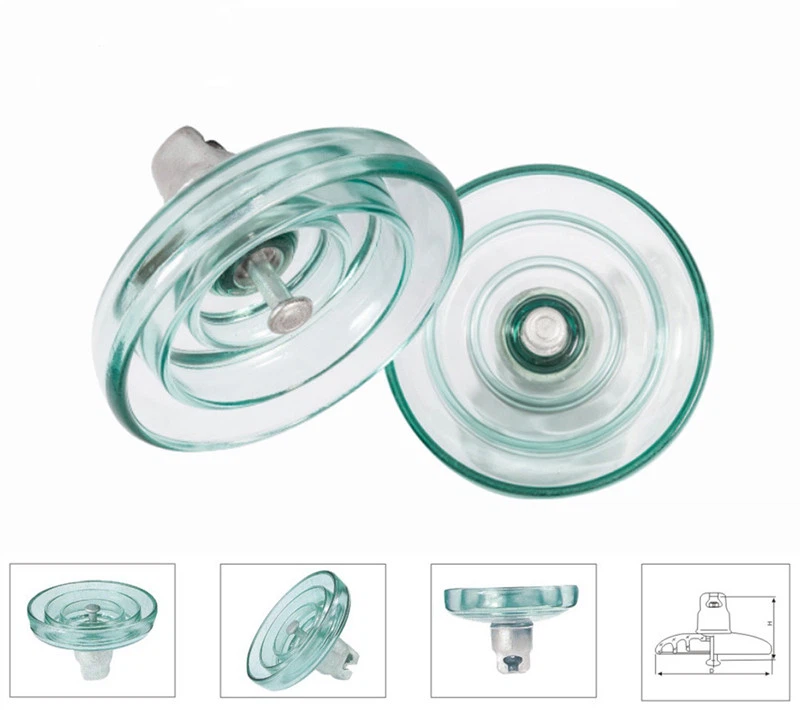

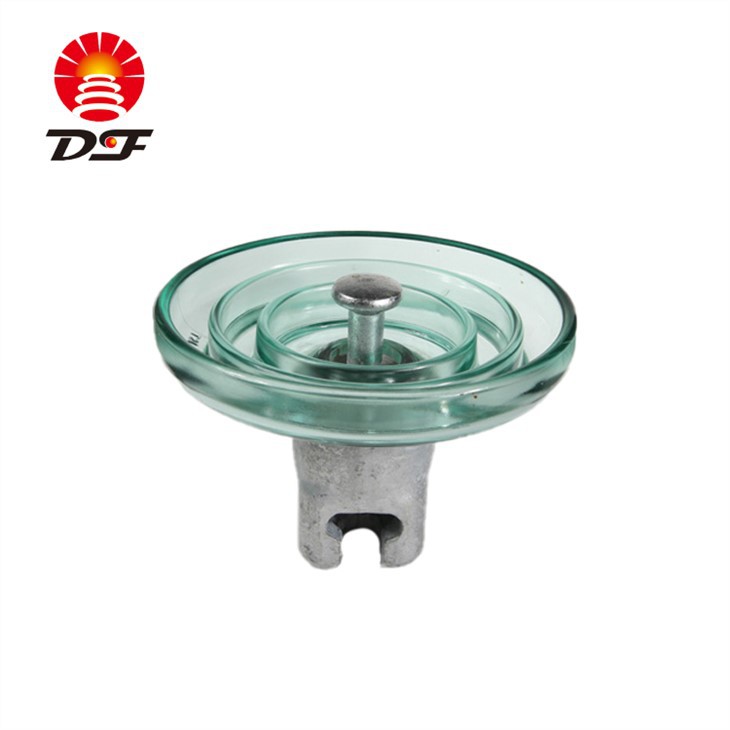

Name: Toughened glass insulator
Type: 120kN Toughened glass insulator
Related type: 70kN, 100kN, 120kN, 160kN, 210kN, 240kN
Voltage Range: 12kV~220kV
Standard: IEC standard
Mechanical failing load: 70kN, 100kN, 120kN, 160kN, 210kN, 240kN and as per client’s request
Material: The main raw materials of glass insulator shall include quartz sand, feldspar, limestone, dolomite, soda ash, potassium carbonate, etc.

Glass disc suspension insulator : the tempered glass formed by the action characteristics of glass insulator is homogeneous silicate, the internal microstructure uniformity is better than that of electric porcelain, and has better dielectric strength. At the same time, the surface of tempered glass has press tress and excellent thermal stability.Toughened glass insulators have a superior ability to endure mechanical and electrical overload condition.

IEC designation		U120B/146
Diameter D	mm	255
Height H	mm	146
Creepage distance L	mm	320
Socket coupling	mm	16
Mechanical failing load	kn	120
Mechanical routine test	kn	60
Wet power frequency withstand voltage	kv	40
Dry lightning impulse withstand voltage	kv	100
Impulse puncture voltage	P.U	2.8
Power frequency puncture voltage	kv	130
Radio influence voltage	μv	50
Corona visual test	kv	18/22
Power frequency electric arc voltage	ka	0.12s/20Ka
Net weight per unit	kg	4
