Porcelain Strain Insulator



As a manufacturer of porcelain strain insulators based in China, we take immense pride in creating premium quality products that cater to a wide range of requirements of our clients all across the globe. Each of our porcelain strain insulators is crafted to meet the highest industry standards and is designed to provide exceptional performance even in the most rugged and challenging conditions. In this product introduction, we would like to discuss the key aspects of our porcelain strain insulators and why you should consider them as a part of your product portfolio.



1. Design and Quality



Our porcelain strain insulators are designed to cater to the needs of a variety of clients who require high-quality insulators for different purposes. Whether it's for electrical transmission or as a part of railway infrastructure, we have the expertise to design and manufacture the most suitable porcelain strain insulators for your specific requirements. Our products are made using the latest technology and adhere to strict quality control procedures to ensure that every unit is of the highest quality.



2. Material and Durability



The material used in our porcelain strain insulators is high-grade porcelain, which is known for its exceptional strength and durability. The insulators are built to withstand harsh weather conditions, mechanical stress, and environmental factors such as humidity and dust. They are designed to have a long lifespan, which makes them a smart and valuable investment.



3. Customizations



We offer a range of customization options to our clients to meet their specific needs. We can customize the dimensions, voltage ratings, and designs of our porcelain strain insulators to ensure that they fit perfectly into your project requirements. We have a team of experienced engineers who can work closely with you to develop a suitable design that meets your exact specifications.



4. Cost-Effective



One of the most significant advantages of our porcelain strain insulators is that they are cost-effective. As a manufacturer based in China, we can offer premium quality products at very competitive prices, making them ideal for businesses that are looking for a smart, low-cost investment without compromising on quality and performance.



5. Environmentally Friendly



Our porcelain strain insulators are eco-friendly, as they are made using natural materials that do not harm the environment in any way. They are also designed to be energy-efficient, which helps in reducing carbon footprint and saving energy costs in the long run.



In conclusion, our porcelain strain insulators are a smart investment for businesses that require high-quality, durable, cost-effective, and eco-friendly insulators. At our company, we strive to maintain the highest standards of quality and customer service to ensure that our clients get the best value for their investment. We invite you to contact us to know more about our porcelain strain insulators and how they can be customized to suit your specific requirements.



Name: porcelain strain insulator
Type: GY3 porcelain strain insulator
Related type: GY1, GY2, GY3, GY4,
Voltage Range: 0.4kV~33kV
Standard: The AS standard
Graze colors of insulators: Brown or light gray
Mechanical failing load: 44kN,53kN,89kN and as per client’s request
Material: Alumina and silica porcelain
Application: Overhead lines and transmission lines

Porcelain stay insulator is an electrical insulator that is designed to work in mechanical tension (strain), to withstand the pull of a suspended electrical wire or cable. They are used in overhead electrical wiring, to support radio antennas and overhead power lines.

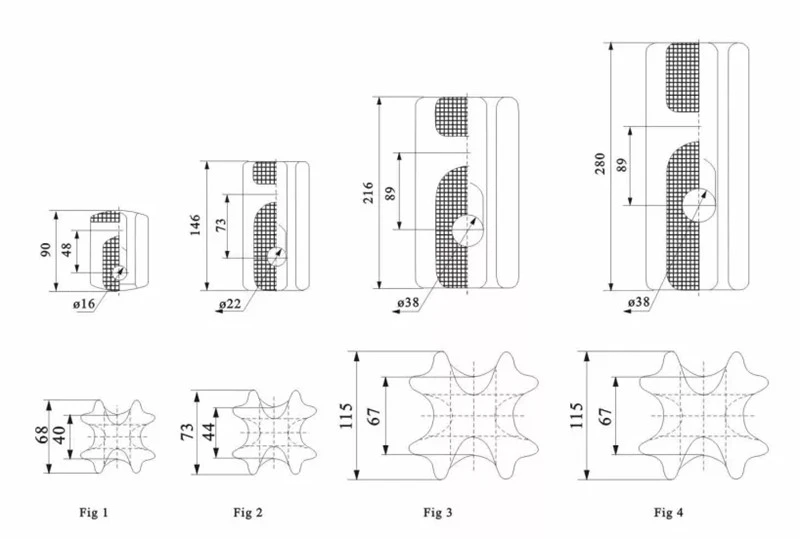

AS Class		GY1	GY2	GY3	GY4
Main Dimension (mm)	H	89	146	216	280
	h	44	73	89	89
	D	64	73	115	115
	d	44	44	67	67
	d1	16	22	38	38
Mechanical falling load (kN)		27	71	222	222
Power frequency flashover voltage (kV)	Dry	10	15	20	30

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

1. Q: Does your company accept customization?
A:We accept OEM service.

2. Q: What’s your warranty terms?
A: We offer 24 months warranty terms.

3. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.

4.Q: Do you have the test and audit service?
A: Yes, we have audit service , and sample\ routine\ type test reports.
