Porcelain Fuse Cutout

Introduction:



As a China-based manufacturer, our company has been providing wholesale products to merchants from different parts of the world. In line with our commitment to offering high-quality products, we are proud to introduce our Porcelain Fuse Cutout to merchants operating in various industries. This product is the ideal solution for multiple applications that require efficient and reliable electrical protection. In this guide, we will review the features and benefits of our Porcelain Fuse Cutout and explain how it can help businesses to operate more efficiently.



Features:



Our Porcelain Fuse Cutout is designed to meet the high safety standards required in different industries. The product is made of high-grade porcelain material, which enhances its durability and resistance to wear and tear. The porcelain material is also resistant to extreme weather conditions, making it suitable for use in harsh environments.



The Porcelain Fuse Cutout comes with a range of features that make it efficient and easy to use. Firstly, it is equipped with a high-quality fuse holder that ensures that the fuse stays in place and is well-protected. This prevents the fuse from falling or getting damaged, which can in turn affect the performance of the system. Secondly, the product comes with a cutout switch that enables quick and efficient power isolation in case of an emergency. This feature enhances safety, especially in cases where electrical faults have occurred.



Benefits:



1. High-quality product - Our Porcelain Fuse Cutout is made of high-grade porcelain material, which enhances its durability and resistance to wear and tear. This makes it a high-quality product that can withstand the demands of different environments and applications.



2. Reliable protection - The Porcelain Fuse Cutout is designed to provide reliable protection to electrical systems. The fuse holder ensures that the fuse stays in place and is well-protected, while the cutout switch allows for quick and efficient power isolation in case of an emergency.



3. Versatile application - Our Porcelain Fuse Cutout is suitable for different applications, including overhead distribution lines, substations, and other high-voltage installations. This versatility makes it an ideal solution for businesses operating in different industries.



4. Cost-effective - Our Porcelain Fuse Cutout is a cost-effective solution that provides reliable protection to electrical systems. It is easy to install, maintain, and replace, which reduces the cost of maintenance and downtime.



Applications:



Our Porcelain Fuse Cutout is suitable for different applications, including overhead distribution lines, substations, and other high-voltage installations. It is ideal for businesses operating in various industries, including:



1. Power generation - The Porcelain Fuse Cutout provides reliable protection to electrical systems in power generation plants.



2. Construction - The product is suitable for use in construction sites, providing efficient and reliable electrical protection.



3. Manufacturing - The Porcelain Fuse Cutout can be used in manufacturing plants where high-voltage systems are in use.



4. Telecommunications - The product provides reliable protection to electrical systems used in telecommunications networks.



Conclusion:



In conclusion, our Porcelain Fuse Cutout is a reliable and cost-effective solution that provides efficient electrical protection to different systems. It is made of high-grade porcelain material, which enhances its durability and resistance to wear and tear. The product comes with a range of features that make it efficient and easy to use, including a high-quality fuse holder and a cutout switch for quick and efficient power isolation. It is suitable for different applications, making it an ideal solution for businesses operating in different industries. Order from us today and enjoy the benefits of our high-quality Porcelain Fuse Cutout.



Name: Porcelain fuse cutout
Type: 27kV porcelain fuse cutout
Related type: 15kV,27kV,38kV polymer drop out fuse cutout
Voltage Range: 15kV~38kV
Standard: The IEC 60282-2
Colors: Grey, brown, or as customers’ request
Application: Overhead lines and distribution transformers

Porcelain fuse cutout is widely used in 15kV-38kV distribution lines and primary side of distribution transformers as protection and equipment switching and cutting operation.

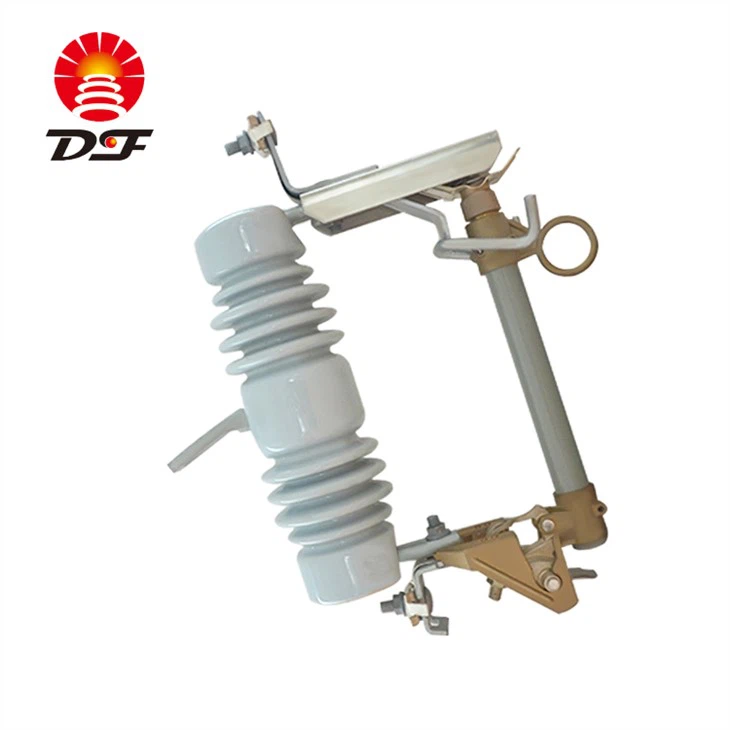

It is composed of insulator supports and fuse tube,static contacts fixed on two sides of insulator support and moving contacts installed on two ends of fuse tube, and arc extinguishing tube.

Environment temperature:-40℃ to 40℃.
Relative humidity:daily average value not more than 95%, on average less than 90%.
The location of on more than 1000m altitude(high altitude type not more than 3000m).
Wind speed not more than 34m/s.
Ice cover thickness not more than 20mm.
Installation site should be no fire and explosion danger, chemical corrosion andstrenuous vibration.

Type	Rated voltage kv	Rated current A	Breaking current A	Impulse voltage bil kV	Power-frequency withstand voltage kV	Creepage distance mm	Weight kg
RW12-12	12	100	10000	110	50	250	7.3
RW12-12	12	200	12000	110	50	250	7.3
RW12-24	24	100	10000	150	70	350	8.8
RW12-24	24	200	12000	150	70	350	8.8
RW12-24	24	100	10000	150	70	540	8.8
RW12-24	24	200	12000	150	70	540	8.8
RW12-36	36	100	10000	170	95	600	15.5
RW12-36	36	200	12000	170	95	600	15.8
RW12-36	36	100	10000	200	95	720	16.0
RW12-36	36	200	12000	200	95	720	16.4

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

Q: Are u the factory or trading company?
A: We are factory who has over 21 years production experiences.

Q: What's your main products?
A: porcelain and composite insulators, hardware of all kinds for high-voltage applications and related products.

Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.

Q: What’s your payment terms?
A: We usually accept all kinds of payment terms, T/T, L/C, Cash.

Q: How can you control your quality?
A: For each production processing, we have complete QC system for the chemical composition, physical and electrical properties. After production, all the goods will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.

Q: What’s your warranty terms?
A: We offer 24 months warranty terms.
