Drop Fuse Cutout - The Perfect Solution for Reliable Power Distribution



Power distribution is an essential aspect of modern life, and any interruption in it can have severe consequences. At the same time, power distribution systems are susceptible to several elements that can damage them, leading to power outages, downtime, and ultimately, significant losses. To mitigate these risks, you need to have reliable and robust safety measures in place. One such solution is the Drop Fuse Cutout, an essential component of any power distribution system.



The Drop Fuse Cutout is a device that is used to protect distribution transformers, lines, and other power systems from overloads and short circuits. Its primary function is to prevent equipment damage by preventing the flow of electricity when a fault occurs. The device consists of three parts - the base, the fuse tube, and the operating mechanism. When a fault occurs, the operating mechanism triggers, and the fuse tube breaks, preventing the flow of electricity.



Below, we discuss the various aspects of Drop Fuse Cutouts that make them an integral part of modern power distribution systems.



Durable and Reliable



The first and foremost aspect of any safety equipment is its durability and reliability. The Drop Fuse Cutout is designed to endure harsh weather conditions, high temperature, and other external factors that can damage it. It is constructed using high-grade materials such as porcelain, which can withstand high voltage and temperature. The device is also equipped with a robust operating mechanism that can withstand frequent switching without any wear and tear. Overall, the reliability and durability of the Drop Fuse Cutout make it an ideal choice for any power distribution system.



Efficient and Cost-Effective



The Drop Fuse Cutout is an efficient device that ensures optimal power distribution while minimizing costs. Its primary function is to prevent equipment damage and power outages, resulting in a more stable and reliable power supply. It reduces the need for costly and time-consuming repairs, maintenance, and replacements, thereby saving costs in the long run. Moreover, the device is easy to install and operate, requiring minimal training, and can quickly replace a faulty piece.



Variety of Options



Every power distribution system has different requirements, and the Drop Fuse Cutout comes in multiple options to cater to these varying needs. The device is available in different sizes and ranges, depending on the system's voltage and current. Users can choose from a wide range of options to find the perfect fit for their power distribution system.



Longevity



The Drop Fuse Cutout has a long lifespan and can function for many years without any issues. Its rugged construction and design ensure that the device can work efficiently for extended periods, eliminating the need for frequent replacements. It also requires minimal maintenance, making it a convenient and cost-effective solution for power distribution systems.



Conclusion



In conclusion, the Drop Fuse Cutout is an essential component of any power distribution system. Its durability, reliability, cost-effectiveness, ease of installation, and variety of options make it an ideal choice for power distribution systems. With its sturdy construction, effective protection mechanism, and long lifespan, the Drop Fuse Cutout ensures smooth and continuous operation of power distribution systems, minimizing the risk of downtime, equipment damage, and losses. As a manufacturer, we take pride in offering high-quality Drop Fuse Cutouts to merchants who value efficiency and dependability in their power distribution systems.



Name: Drop fuse cutout
Type: 27kV drop fuse cutout
Related type: 15kV,27kV,38kV drop out fuse cutout
Voltage Range: 15kV~38kV
Standard: The IEC 60282-2
Colors: Grey or as customers’ request
Application: Overhead lines and distribution transformers

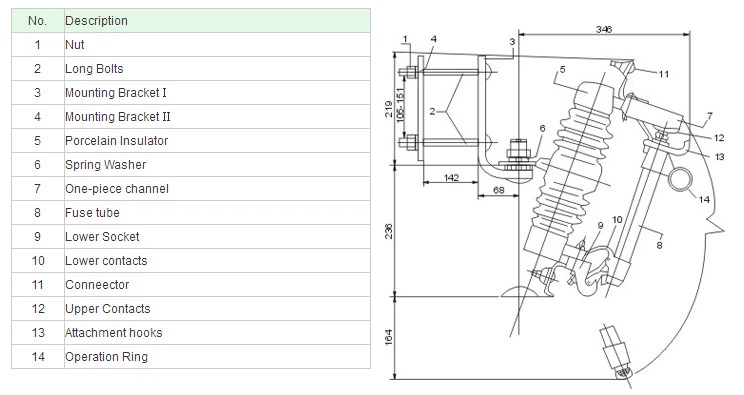

Drop fuse cutout is one of outdoor high voltage protective devices.There are polymer insulator parts and porcelain insulator parts. It provides reliable protection for the 15-38KV power distribution line and distribution transformers. Drop fuse cutout protects the overload and short circuit, switching on/off the rated load current. Drop fuse cutout is composed of insulator supports and fuse tube,static contacts fixed on two sides of insulator support and moving contacts installed on two ends of fuse tube, and arc extinguishing tube.

Type	Rated voltage kv	Rated current A	Breaking current A	Impulse voltage bil kV	Power-frequency withstand voltage kV	Creepage distance mm
CF-15-100-110-10000	15	100	10000	110	50	430
CF-15-100-110-12000	15	200	12000	110	50	430
CF-27-100-150-10000	27	100	10000	150	70	756
CF-27-100-150-12000	27	200	12000	150	70	756
CF-38-100-200-2000	38	100	2000	200	95	900
CF-38-100-200-5000	38	200	5000	200	95	900

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

Q: Are u the factory or trading company?
A: We are factory who has over 21 years production experiences.

Q: What's your main products?
A: porcelain and composite insulators, hardware of all kinds for high-voltage applications and related products.

Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.

Q: What’s your payment terms?
A: We usually accept all kinds of payment terms, T/T, L/C, Cash.

Q: How can you control your quality?
A: For each production processing, we have complete QC system for the chemical composition, physical and electrical properties. After production, all the goods will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.

Q: Does your company accept customization?
A: We accept OEM service.
