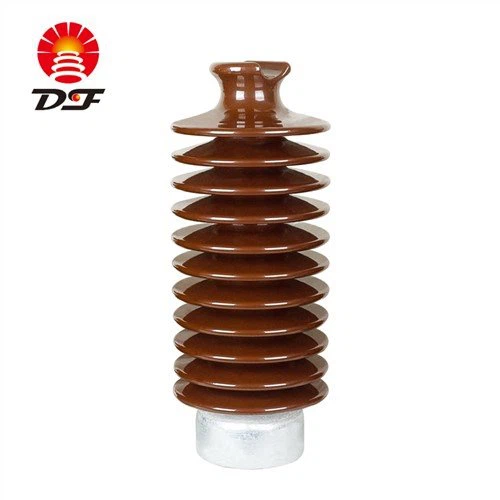

Vertical Line Post Insulator

Introduction:



As a manufacturer of high-quality electrical insulators, we understand the importance of offering reliable products for our customers worldwide. Our Vertical Line Post Insulator is one such product that has been designed to meet the rigorous demands of the electrical industry. This insulator is unlike anything that is currently available, with innovative features that set it apart from the competition. In this product introduction, we will outline the key advantages of our Vertical Line Post Insulator and explain how it can benefit merchants who work with us.



Advantages of our Vertical Line Post Insulator:



1. High-Quality Materials:



Our Vertical Line Post Insulator is made from high-quality materials, ensuring its durability and longevity. Our insulators are made from specially formulated grades of porcelain, which have been tested and proven to withstand the rigors of outdoor use. The material used in our insulators also provides excellent electrical insulation, which is essential for ensuring safe and reliable electricity transmission.



2. Innovative Design:



Our Vertical Line Post Insulator boasts an innovative design that sets it apart from the competition. The insulator features a unique shape that provides excellent mechanical strength, making it resistant to breakage even in adverse weather conditions. Additionally, each insulator comes equipped with an elastomeric seal that provides a superior moisture barrier, protecting the insulator from moisture and preventing electrical arcing.



3. Easy to Install:



Our Vertical Line Post Insulator is designed with ease of installation in mind. The insulator features a universal design that makes it compatible with a wide range of mounting hardware, including both ball and socket type mounts. Our insulators are also easy to install, with a simple design that requires no special tools or equipment.



4. Cost-Effective:



Our Vertical Line Post Insulator is a cost-effective solution for merchants looking to reduce their overhead costs. The insulator's innovative design makes it extremely durable, reducing the need for costly replacements and repairs. Additionally, our insulators are competitively priced, offering an affordable alternative to other options on the market.



Conclusion:



In conclusion, our Vertical Line Post Insulator is an innovative product that is designed to provide reliable electrical insulation in even the most adverse weather conditions. With its high-quality materials, innovative design, ease of installation, and cost-effectiveness, our insulator is the ideal choice for merchants looking to offer their customers a superior product. We are committed to providing the highest level of customer service and satisfaction, and we look forward to working with merchants worldwide to bring our product to a broader audience.



Product Information

Name: vertical line post insulator
Type: 57-14 vertical line post insulator
Related type: 57-11,57-12,57-13
Voltage Range: 11kV~66kV
Standard: ANSI C29.7
Graze colors of insulators: brown or light grey
Mechanical failing load: 10kN,12.5kN
Material: Alumina and silica porcelain
Application: Overhead lines and transmission lines

Product Introduction

The Vertical Line Post Insulator is made of a piece of porcelain or a composite material (silicone rubber). Due to its excellent mechanical properties, it is used in a wide range of different applications. And when used as a pulling post on power lines up to 69kV, it is fixed to the conductor by means of a pulling wire, thus replacing the traditional product. Secondly, in substations and related applications, our products protect transformers, switchgear and other related components that are subject to bending and compression forces during use.

Product Advantage

The Vertical Line Post Insulator is exposed to forces of compression, twisting and bending on a daily basis. Therefore, it must have high mechanical properties to overcome these forces, otherwise it will simply collapse and cost more to replace. Secondly, this product should have a reasonable creepage distance so as not to crisis the integrity of the path, which is shielded from tracking.

ANSI Class No.	Creepage Distance (mm)	Dry Arcing Distance (mm)	Cantilever Strength (kN)	Flashover Voltage（kV）		Critical Impulse Flashover Voltage (kV)		RIV Data
				Dry	Wet	Pos	Neg	Test voltage to ground (kV)	Max.RIV at 1MHz (μV)
57-11	356	165	12.5	70	50	120	155	15	100
57-12	559	241	12.5	100	70	160	185	22	100
57-13	737	311	12.5	125	95	200	250	30	200
57-14	1016	368	12.5	140	110	230	310	44	200
57-15	1143	438	12.5	160	130	265	355	44	200

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

1.Q: What's your main products?
A: porcelain and composite insulators, hardware of all kinds for high-voltage applications and related products.

2.Q: What’s your payment terms?
A: We usually accept all kinds of payment terms, T/T, L/C, Cash.

3.Q: Do you provide sample? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge,the sample charge can return to customer if they place formal order.

4.Q: How long is your delivery time?
A: The general EXW delivery time is 35-45 days after order date. Anther, if you need is FOB ,CIF or CFR delivery time, we will advise after discuss according to your order exact situation and our production schedule.

5.Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

6.Q: Could you offer Form E,C/O or 3rd Party Test report?
A: Yes,we can offer,we also can apply the embassy stamp for you if necessary.
