Introduction:
Polymer Post Insulator is a vital component in electrical power systems, used to provide insulation and attachment to conductors on transmission and distribution lines. This type of insulator is made from high-quality polymer materials that exhibit excellent mechanical, electrical, and environmental properties. It is a cost-effective solution for voltage distribution and transmission, ensuring reliable and efficient power supply with low maintenance costs.
Key Features:
1. Excellent Electrical insulation properties:
Polymer Post Insulators provide excellent electrical insulation properties, which means that they can effectively isolate conductors from earth and other conductive parts. The insulators have high resistivity, making them suitable for high voltage power lines, where there is a high risk of electrical leakage.
2. Long-lasting Durability:
Polymer Post Insulators have superior mechanical strength, resistance to weathering and UV rays, and are resistant to physical damage or vandalism. These features make them an ideal choice for harsh environments or areas prone to extreme weather conditions such as storms, hurricanes, or earthquakes.
3. Easy to Install and Maintain:
Polymer Post Insulators are lightweight and easy to handle during transportation, installation, and maintenance. They do not require any special tools or equipment for installation, which means the process can be carried out quickly and efficiently. The insulators do not corrode, which reduces their maintenance needs, and they can be easily cleaned to maintain their effectiveness.
4. Cost-effective Solution:
Polymer Post Insulators are a cost-effective solution for voltage distribution and transmission. They are cheaper than traditional porcelain insulators, and there are no extra transportation costs associated with them. They require less maintenance and last longer than porcelain insulators, which translates into lower operating costs over the insulator's lifetime.
Applications:
Polymer Post Insulators are widely used in various applications, including:
1. Transmission Lines:
Polymer Post Insulators are an essential component of transmission lines, where they provide excellent electrical insulation, strength, and resistance to harsh environmental conditions.
2. Distribution Lines:
Polymer Post Insulators are used in distribution lines to prevent electrical leakage, reduce power losses, and ensure efficient power distribution.
3. Railway Electrification:
Polymer Post Insulators are used in railway electrification systems to provide insulation and attachment to overhead conductors, ensuring reliable and efficient rail transportation.
Conclusion:
Polymer Post Insulators are an essential component of electrical power systems, providing reliable and efficient power transmission and distribution. They exhibit excellent electrical insulation properties, superior mechanical strength, and are resistant to harsh environmental conditions, making them a cost-effective solution. They are easy to install and maintain, reducing the overall operating costs of power systems. As a manufacturer located in China, we are committed to providing high-quality Polymer Post Insulators that meet international standards and are tailored to meet our customer's needs. Contact us today to learn more about our products and how they can benefit your business.

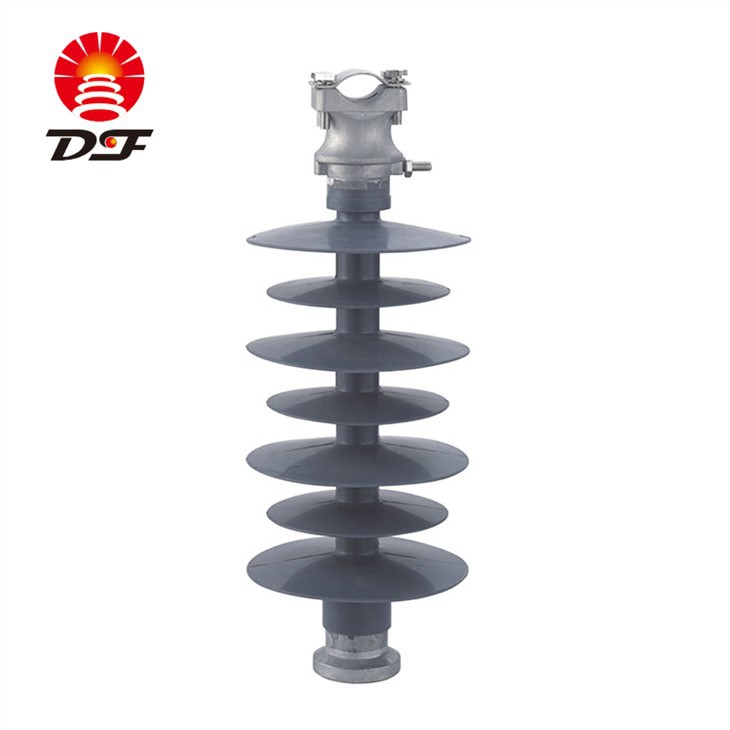

Name: polymer post insulator
Type: 35kV polymer post insulator
Related type: 10kV,20kV,25kV,35kV
Voltage Range: 10kV~66kV
Standard: The IEC standard
Colors of insulators: Red or light gray
Mechanical failing load: 4kN,10kN,12.5kN and as per client’s request
Material: Silicone Rubber Housing & Fiberglass rod and end fittings
Application: Overhead lines and transmission lines
Polymer post insulator are provided to different markets and shall have the mechanical, electrical and insulation class ratings as per IEC, ANSI standards or customer specifications. The complete polymeric insulators shall consist of a Fiberglass Reinforced Plastic (FRP) core having superior electrical and mechanical performance, sheath (housing), sheds and mechanical fittings.

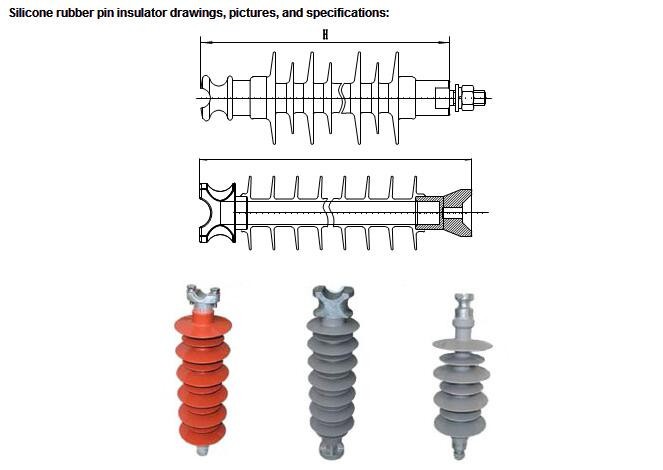

Technical specifications:
Type | FPQ-10/3T | FPQ-20/12.5 | FPQ-35/4 |
Rated Voltage(kV) | 10 | 20 | 35 |
Mechanical Tensile Load (kN) | 4 | 12.5 | 4 |
Coupling length H. (mm) | 215 | 350 | 430 |
Minimum Arcing distance (mm) | 120 | 230 | 315 |
Minimum Creepage distance(mm) | 300 | 560 | 1050 |
Power Frequency Wet Withstand Voltage(kV) | 42 | 85 | 95 |
Lightning Impulse Withstand Voltage (kV) | 95 | 185 | 265 |
Our Services:
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.
FAQ:
1.Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2.Q: How long is your delivery time?
A: The general EXW delivery time is 35-45 days after order date. Anther, if you need is FOB ,CIF or CFR delivery time, we will advise after discuss according to your order exact situation and our production schedule.
3.Q: What's your MOQ?
A: In Generally,the MOQ is 100pcs,If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation
4.Q: Where are you located?
A: Our factory located at Liling City,Hunan Province,China.
5.Q: Could you offer Form E,C/O or 3rd Party Test report?
A: Yes,we can offer,we also can apply the embassy stamp for you if necessary.
6.Q: What standards do you have?
A: Our products meets ANSI,BS,DIN,IEC etc.
Why choose us?
- As both a supplier and manufacturer, we offer competitive prices.
- We continue to inject new connotations into the development of the industry through innovation in industrial model and management.
- Our Post Insulator products are made to last and withstand harsh conditions.
- Our products have been unanimously praised in many industries, and the company has gradually grown and developed rapidly and steadily, becoming the speaker of the domestic Polymer Post Insulator industry.
- Our Post Insulator products are competitively priced without sacrificing quality.
- We have a group of experts and experienced technical service personnel, who can provide users with professional consultation, program design and fast, high-quality technical services.
- Our Post Insulators are built to last and provide reliable performance.
- Our business policy is to devote ourselves wholeheartedly to satisfy our customers.
- Our Post Insulators are designed to meet the unique requirements of various industries.
- Since its inception, we have been in line with the principle of good faith, down-to-earth style, won the trust of many manufacturers.
