Introducing the Revolutionary Reel Insulator for Efficient and Safe Cable Management



As a leading Chinese manufacturer of high-quality electronic products, we are thrilled to present our innovative Reel Insulator as the perfect solution for cable management needs across the world. Whether you are a merchant of industrial machinery, consumer electronics, or communications equipment, the Reel Insulator is designed to optimize your operations.



The Reel Insulator is a durable and versatile cable management tool that helps to keep cables organized and protected from damage or tangling. Made from high-quality materials, including PVC plastic and ABS, the Reel Insulator is engineered to guarantee longevity, strength, and performance in all types of conditions.



Here are some of the benefits that the Reel Insulator offers:



1. Easy and Safe Cable Management



With Reel Insulator, sorting, and organizing your cables has never been easier. It provides a simple yet effective way to manage multiple cables, which equates to a more efficient and productive workspace. Moreover, the Reel Insulator protects cables from getting tangled or damaged or even from external elements such as moisture, dust, and other pollutants, which can lead to system downtime or poor performance.



2. Saves Space



If saving floor or shelf space is a priority in your workspace, then the Reel Insulator is a perfect solution. It is engineered to fit multiple cable cords, and its compact design enables it to be stacked securely in even limited spaces. It so helps reduce the clutter that can stem from having too many cords snaking across your work area.



3. Designed for Safety



Safety in the workplace is always critical. The Reel Insulator’s design eliminates the risk of trips and falls over loose cables. Its sleek shape and design make it easy to stow away, which also prevents it from tipping over, an added safety feature. It is also weather-resistant, so you can use it both indoors and outside.



4. Cost-Effective Cable Management



Investing in the Reel Insulator can save you money in the long run. Instead of constantly replacing damaged cables due to tangling or exposure to external elements, the Reel Insulator provides the perfect solution. It is a durable product that is built to last long, which makes it a one-time investment.



5. Versatile



Reel Insulator is available in various sizes, making it customizable to your cable management needs. It is versatile enough to handle different types of electronic cords, and its compact design allows them to fit even in tight places.



The Reel Insulator is easy to install, making it an ideal option for both new installations or upgrading existing cable management systems. Once installed, you can be sure that your cables will be organized and secure, saving you time and money in the process.



In conclusion, the Reel Insulator is a revolutionary product that will transform how you handle your cables. If you want a dependable, cost-efficient and versatile tool that can enhance the function and safety of your workspace, then the Reel Insulator is just what you need. Contact us today to place your order, and we guarantee you won't be disappointed!

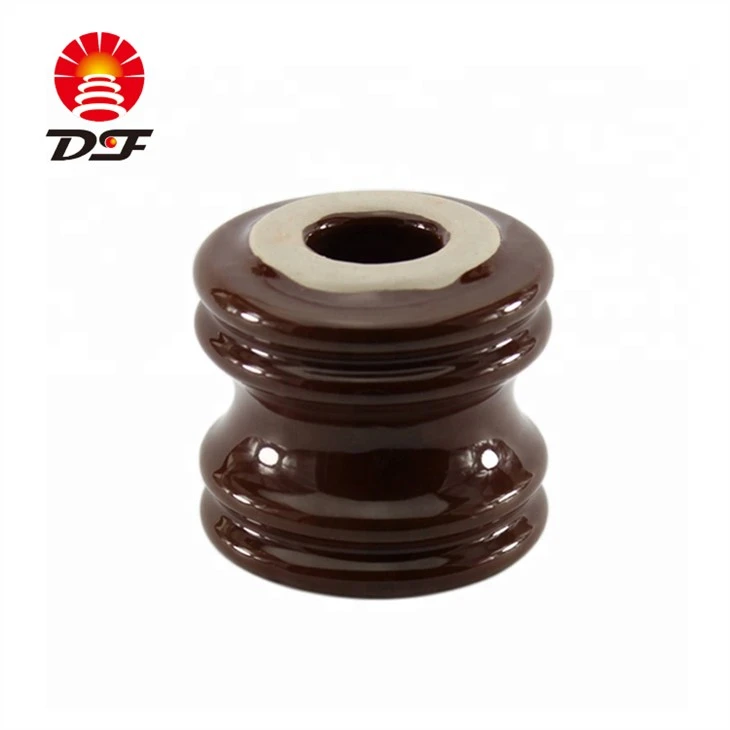

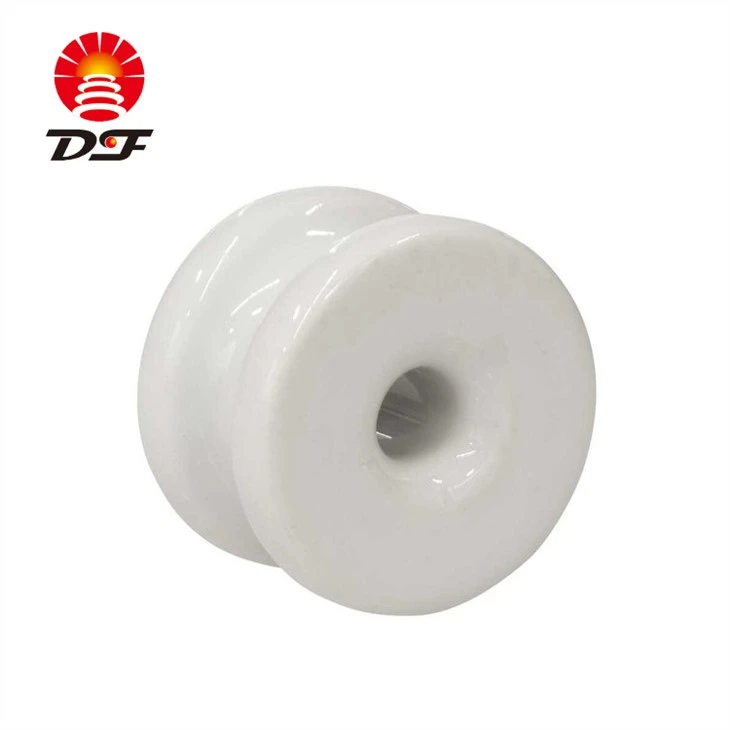

Name: reel insulator
Type: 53-4 Porcelain reel insulator
Related type: 53-1, 53-2, 53-3, 53-4, 53-5, S03, S05, S1, S2, EP194
Voltage Range: 0.4kV~33kV
Standard: The ANSI standard 29.3
Graze colors of insulators: Brown, light gray or white
Mechanical failing load: 9kN,13kN,18kN,20kN,27kN and as per client’s request
Material: Alumina and silica porcelain
Application: Overhead lines and transmission lines

Reel insulators are used on intermediate posts. Their function is to insulate the wire from grounding on the post. They are made from polypropylene and UV stabilized. The excellent design of the insulator keeps the insulator dry.

ANSI Class		53-1	53-2	53-3	53-4	53-5	S03	S05	S1	S2	EP194
Main Dimension (mm)	H	54	76	81	76	105	57	75	88	100	75
	D	57	79	76	105	102	63	88	100	114	89
	d	44	44	44	73	73	35	41	57	63	52
	d1	17.5	17.5	17.5	17.5	17.5	11	17	18	21	17
	R	11	17.5	11	16	11	5	8	13	16	12.5
Mechanical strength (kN)		9	13	118	20	27	6.25	17.8	17.8	22.25	13
Power frequency flashover voltage (kV)	Dry	20	25	25	25	35	17	22	26	35	17
Standard		ANSI					IEC

1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. We can manufacture it according to customers requirements.

1.Q: Where are you located?
A: Our factory located at Liling City,Hunan Province,China.

2.Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.

3.Q: Do you test all your goods before delivery?
A: Yes,we have routine test before delivery.

4.Q: Could you offer Form E,C/O or 3rd Party Test report?
A: Yes,we can offer,we also can apply the embassy stamp for you if necessary.

5.Q: What standards do you have?
A: Our products meets ANSI,BS,DIN,IEC etc.



Why choose us?

• Our factory has strict quality control procedures to ensure the quality and consistency of our products.
• 'Quality first, technology first, pragmatic innovation, integrity management' is our company's operating philosophy.
• Our products are safe and reliable, ensuring the safety and security of our customers.
• With the continuous use of new products and technologies, the continuous improvement of customer expectations, and the innovation of competitors, the competition faced by enterprises is becoming increasingly fierce.
• We have a strong reputation for producing high-quality and reliable LV insulator products.
• We strive to strengthen technological progress and management innovation to improve product output and quality of our Reel Insulator.
• Our LV insulator products are designed to withstand harsh environmental conditions and are suitable for outdoor applications.
• In order to meet the different needs of the market, we have developed many products with different specifications.
• Our customer support team is available 24/7 to provide assistance and support to our customers.
• We focus on building a harmonious society to assume more social responsibility.
