ШФ-20Г Porcelain Pin Insulator Russian Type

Porcelain pin insulator ШФ-20Г is intended for insulation and fastening of bare and insulated wires on overhead power lines and in switchgears of power plants and alternating current substations with voltage up to 20 kV and frequency up to 100 Hz at ambient temperatures from -60°С to -50°С . Insulator SHF-20G is the most common pin porcelain insulator for lines with bare and insulated wires. Compared to the insulator ShF-10G, the creepage path length is more than 1.5 times increased.

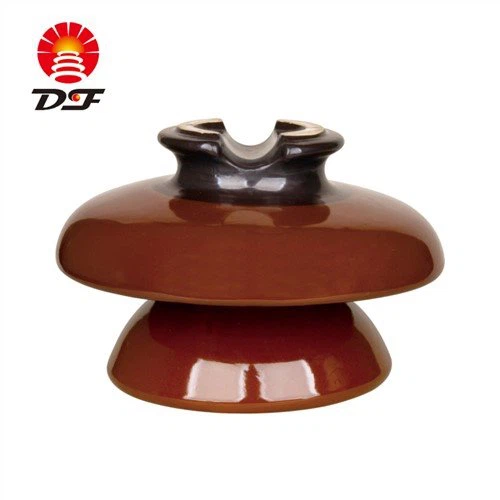

ШФ-20Г Porcelain Pin Insulator

SHF-20G pin insulators provide reliable insulation and surge protection. These insulators are widely used in various industries where the safety and efficiency of electrical equipment play an important role.One of the key characteristics of these insulators is their high electrical insulating ability. They withstand significant electrical loads and prevent the penetration of current into unintended areas of circuits. This is especially important when working with high voltages.
